Flange Isolating Gasket Kit Sleeves & Washers

Isolating sleeves and washers are manufactured in various materials and sizes to meet every customer’s needs. Also available are one-piece integral sleeves and washers which are made of Minlon, providing superior compression strength. G-10 Integral sleeves are available in sizes through 1-1/2” and Minlon Integral sleeves are available in sizes through 1”. A variety of high temperature sleeves are also stock items.

With each isolating washer, an S.A.E. electroplated steel washer is provided to protect the isolating washer from damage by the nut. APS flange isolating gasket kits are available in single or double washer kits.

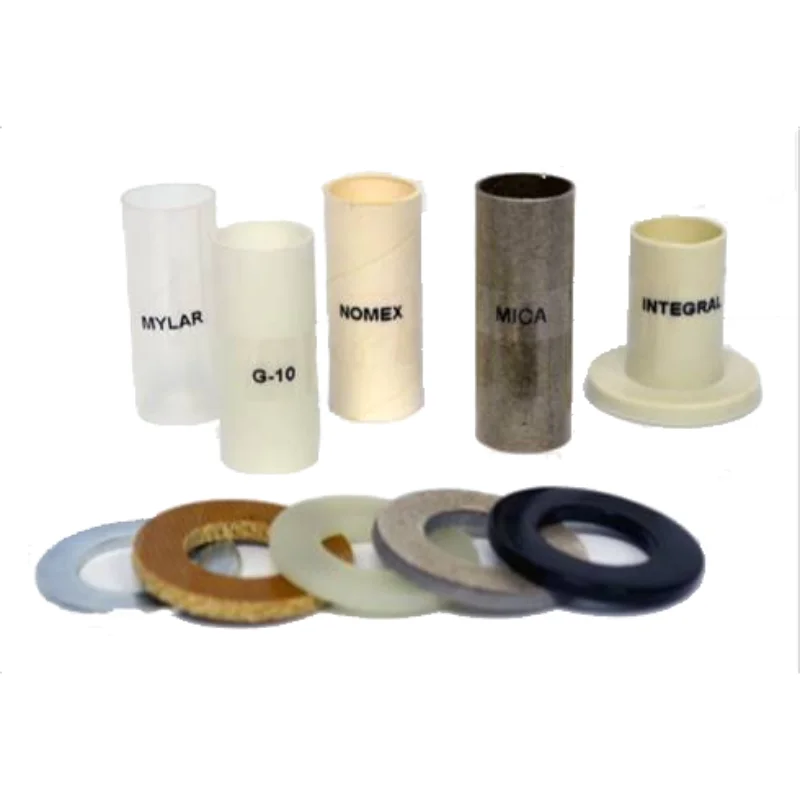

Sleeves available in:

• G10 Glass Epoxies
• Mylar
• Minion (mineral-filled Nylon)
• Nomex
• Mica

Washers available in:

• Micarta
• Glass Epoxies: G3, G7, G10, G11
• Hardened-coated Steel
• Mica
• Special Orders

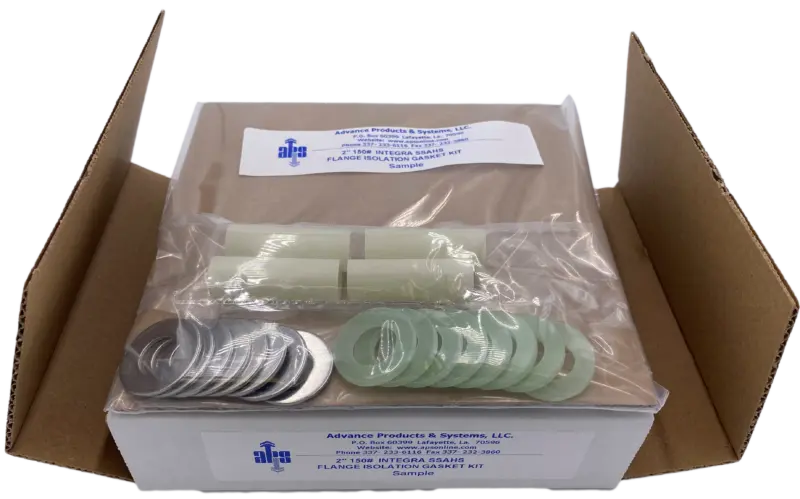

Flange Isolating Gasket Kit Packaging

Each APS Flange Isolation Gasket Kit is packaged individually in durable corrugated boxes. Isolating sleeves and washers are packaged separately and are cushioned within the box to protect them from damage during shipment.

Each set is clearly tagged with flange size, pressure rating, type of isolating sleeve, and whether it is a single washer or double washer set. A recommended bolt tightening sequence sheet is provided with each kit.
