Dri-Splice Wire Connectors
Volver

Dri-Splice Wire Connectors

CategorĆ­as: , ,

For use in electrical systems with 30v or less.
The SpearsĀ® Dri-Splice Seal designed into each wire hole enables you to stock one connector for all applications. The Dri-Splice Seal features an interference webbing which expands to accommodate #18 through #6 gauge wire sizes. In the event only two holes are used, the Dri-Splice Seal prevents sealant from leaking out through the third hole.



SOLD IN STANDARD PACK QUANTITIES ONLY
DS-100/DS-150 & DS-400/DS-450 Dri-Splice Wire Connector Installation Information

Dry splice connector ilustration

Dri-Splice Wire Connector General Information
Sealant: DS-300 Sealant* (for DS-100 & DS-150) -MSDS available upon request.
DS-400 & DS-450 Dielectric Silicone Sealant*-defined as an Article, per OSHA 29 CFR 1910, 1200, which does not require an MSDS.
DS-500 Dielectric Silicone Sealant*-defined as an Article, per OSHA 29 CFR 1910, 1200, which does not require an MSDS.
Shelf Life: DS-300 (unopened tube)ā€” One Year*
DS-400 & DS-450 ā€” Indefinite at 73Ā°F (23Ā°C)*
DS-500ā€” Indefinite at 73Ā°F (23Ā°C)*
Electrical Systems: For use in electrical systems with 30v or less. UL Listing NOT required in most areas.

DS-100/DS-150 & DS-400/DS-450 Components:

DS-100 & DS-150 Dri-Splice
  • DS-100 fits AWG #18, #14, #12, or #10
  • DS-150 fits AWG #14, #12, #10, #8, or #6
  • Designed to insure waterproof connections
  • Easily installed in the field without special tools
  • Permanent protection for underground wire splices
  • Requires the use of DS-300 Sealant

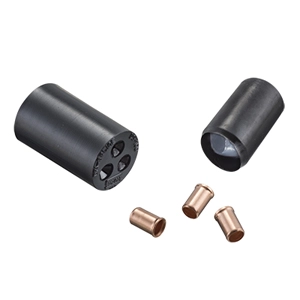

DS-400 & DS-450 Pre-Filled Dri-Splice
  • All the features of the DS-100 or DS-150,
  • The added benefit of being pre-filled with Dielectric Silicone Sealant
  • Reduced inventory requirements
  • Insures proper amount and type of Sealant every time
  • Eliminates costly waste and clean-up
  • Makes installations quick, clean and efficient



SpearsĀ® NEW DS-500 Dri Splice Wire Connector is the fast, reliable and clean way of making positive, waterproof connections you can depend on. Simply twist Wire Nut on and insert into Dielectric Silicone Sealant Cartridge.

The DS-500 is specially designed for irrigation systems and low voltage lighting, marine and security systems and suitable for direct burial.

  • Allows full assembly and check of connection prior to sealing
  • Accepts wire combinations from 3 #22 to 3 #10 AWG solid or stranded copper wire
  • Special ā€œNo-Messā€ cartridge design fully encloses sealant
  • Internal interlock prevents disengagement of wire nut from sealant cartridge
