In-line Tee Style Filters and Reverse In‑line Tee Style Filters

In‑line Tee Style Filters and Reverse In‑line Tee Style Filters

100 GPM and 50 GPM • PVC White • Buna O‑Ring Seal

• In‑line design simplifies installation.
• Allows easy parallel filter configuration for increased flow and filtration.

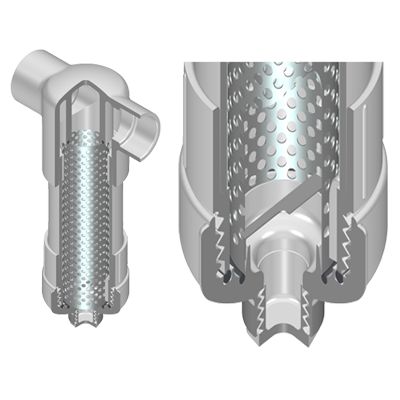

• Removable Type 304 stainless steel filter cartridges in assorted perforations and screen mesh.
• Standard flow filter (internal‑to‑external) traps sediment on inside of cartridge.
• Reverse flow filter (external‑to‑internal) traps sediment on outside of cartridge.
• Convenient bottom drain with 1‑1/4″ NPT stainless steel reinforced plastic thread and plug. Optional cap with 1/4″ outlet available.
• 200 psi working pressure for water @ 73°F (23°C).
• Manufactured from NSF® certified PVC material.

Mesh Size Chart

• 1/16″ Holes — Hole Size: .0625 — Extension ‑16
• 1/32″ Holes — Hole Size: .0312 — Extension ‑32
• 50 Mesh — Hole Size: .0117 — Extension ‑50
• 76 Mesh — Hole Size: .0095 — Extension ‑76
• 100 Mesh — Hole Size: .0059 — Extension ‑100
• 150 Mesh — Hole Size: .0041 — Extension ‑150
• 200 Mesh — Hole Size: .0029 — Extension ‑200 Additional mesh sizes available on request. Example: TF‑50 = 50 Mesh.

Irrigation Tee Filter — 100 GPM PVC White

Buna‑N O‑Ring Seal with Stainless Steel Screen

• TF‑16* — 2‑1/2 /3 x 2‑1/2 /3 — Std Pk 1 — Mstr Ctn 0 — Prod Code 020
• TF‑32* — 2‑1/2 /3 x 2‑1/2 /3 — Std Pk 1 — Mstr Ctn 0 — Prod Code 020
• TF‑50 — 2‑1/2 /3 x 2‑1/2 /3 — Std Pk 1 — Mstr Ctn 0 — Prod Code 020
• TF‑76 — 2‑1/2 /3 x 2‑1/2 /3 — Std Pk 1 — Mstr Ctn 0 — Prod Code 020
• TF‑100 — 2‑1/2 /3 x 2‑1/2 /3 — Std Pk 1 — Mstr Ctn 0 — Prod Code 020
• TF‑150 — 2‑1/2 /3 x 2‑1/2 /3 — Std Pk 1 — Mstr Ctn 0 — Prod Code 020
• TF‑200 — 2‑1/2 /3 x 2‑1/2 /3 — Std Pk 1 — Mstr Ctn 0 — Prod Code 020

Irrigation Tee Filter — 50 GPM PVC White

Buna‑N O‑Ring Seal with Stainless Steel Screen

• MTF‑16* — 2‑1/2 /3 x 2‑1/2 /3 — Std Pk 1 — Mstr Ctn 0 — Prod Code 020
• MTF‑32* — 2‑1/2 /3 x 2‑1/2 /3 — Std Pk 1 — Mstr Ctn 0 — Prod Code 020
• MTF‑50 — 2‑1/2 /3 x 2‑1/2 /3 — Std Pk 1 — Mstr Ctn 0 — Prod Code 020
• MTF‑76 — 2‑1/2 /3 x 2‑1/2 /3 — Std Pk 1 — Mstr Ctn 0 — Prod Code 020
• MTF‑100 — 2‑1/2 /3 x 2‑1/2 /3 — Std Pk 1 — Mstr Ctn 0 — Prod Code 020
• MTF‑150 — 2‑1/2 /3 x 2‑1/2 /3 — Std Pk 1 — Mstr Ctn 0 — Prod Code 020
• MTF‑200 — 2‑1/2 /3 x 2‑1/2 /3 — Std Pk 1 — Mstr Ctn 0 — Prod Code 020

Irrigation Reverse Flow Tee Filter — 100 GPM PVC White

Buna‑N O‑Ring Seal with Stainless Steel Screen

• TF‑16* — 2‑1/2 /3 x 2‑1/2 /3 — Std Pk 1 — Mstr Ctn 0 — Prod Code 020
• TF‑32* — 2‑1/2 /3 x 2‑1/2 /3 — Std Pk 1 — Mstr Ctn 0 — Prod Code 020
• TFR‑50 — 2‑1/2 /3 x 2‑1/2 /3 — Std Pk 1 — Mstr Ctn 0 — Prod Code 020
• TFR‑76 — 2‑1/2 /3 x 2‑1/2 /3 — Std Pk 1 — Mstr Ctn 0 — Prod Code 020
• TFR‑100 — 2‑1/2 /3 x 2‑1/2 /3 — Std Pk 1 — Mstr Ctn 0 — Prod Code 020
• TFR‑150 — 2‑1/2 /3 x 2‑1/2 /3 — Std Pk 1 — Mstr Ctn 0 — Prod Code 020
• TFR‑200 — 2‑1/2 /3 x 2‑1/2 /3 — Std Pk 1 — Mstr Ctn 0 — Prod Code 020

Irrigation Reverse Flow Tee Filter — 50 GPM PVC White

Buna‑N O‑Ring Seal with Stainless Steel Screen

• MTF‑16* — 2‑1/2 /3 x 2‑1/2 /3 — Std Pk 1 — Mstr Ctn 0 — Prod Code 020
• MTF‑32* — 2‑1/2 /3 x 2‑1/2 /3 — Std Pk 1 — Mstr Ctn 0 — Prod Code 020
• MTFR‑50 — 2‑1/2 /3 x 2‑1/2 /3 — Std Pk 1 — Mstr Ctn 0 — Prod Code 020
• MTFR‑76 — 2‑1/2 /3 x 2‑1/2 /3 — Std Pk 1 — Mstr Ctn 0 — Prod Code 020
• MTFR‑100 — 2‑1/2 /3 x 2‑1/2 /3 — Std Pk 1 — Mstr Ctn 0 — Prod Code 020
• MTFR‑150 — 2‑1/2 /3 x 2‑1/2 /3 — Std Pk 1 — Mstr Ctn 0 — Prod Code 020
• MTFR‑200 — 2‑1/2 /3 x 2‑1/2 /3 — Std Pk 1 — Mstr Ctn 0 — Prod Code 020

Standard TF‑16, TF‑32, MTF‑16 & MTF‑32 can be utilized as reverse flow filters by reversing installation from current inlet to outlet and current outlet to inlet.

Irrigation Reverse Flow Tee Filter — 100 GPM Replacement Screens for TF Filters (24″ Length)

• FL‑16‑1 — 1/16″ Holes — Std Pk 4 — Mstr Ctn 0 — Prod Code 020
• FL‑32‑1 — 1/32″ Holes — Std Pk 4 — Mstr Ctn 0 — Prod Code 020
• FL‑50‑1 — 50 Mesh — Std Pk 4 — Mstr Ctn 0 — Prod Code 020
• FL‑76‑1 — 76 Mesh — Std Pk 4 — Mstr Ctn 0 — Prod Code 020
• FL‑100‑1 — 100 Mesh — Std Pk 4 — Mstr Ctn 0 — Prod Code 020
• FL‑150‑1 — 150 Mesh — Std Pk 4 — Mstr Ctn 0 — Prod Code 020
• FL‑200‑1 — 200 Mesh — Std Pk 4 — Mstr Ctn 0 — Prod Code 020

NOTE: When ordering replacement screens for TF and MTF series filters, please provide exact length of old screen within 1/64″ to ensure proper fit of new screen in your filter body.

Irrigation Reverse Flow Tee Filter — 50 GPM Replacement Screens for MTF Filters (12″ Length)

• MFL‑16‑1 — 1/16″ Holes — Std Pk 4 — Mstr Ctn 0 — Prod Code 020
• MFL‑32‑1 — 1/32″ Holes — Std Pk 4 — Mstr Ctn 0 — Prod Code 020
• MFL‑50‑1 — 50 Mesh — Std Pk 4 — Mstr Ctn 0 — Prod Code 020
• MFL‑76‑1 — 76 Mesh — Std Pk 4 — Mstr Ctn 0 — Prod Code 020
• MFL‑100‑1 — 100 Mesh — Std Pk 4 — Mstr Ctn 0 — Prod Code 020
• MFL‑150‑1 — 150 Mesh — Std Pk 4 — Mstr Ctn 0 — Prod Code 020
• MFL‑200‑1 — 200 Mesh — Std Pk 4 — Mstr Ctn 0 — Prod Code 020

Irrigation Reverse Flow Tee Filter — 100 GPM Replacement Screens for TFR Filters (24″ Length)

• FL‑16‑1 — 1/16″ Holes — Std Pk 4 — Mstr Ctn 0 — Prod Code 020
• FL‑32‑1 — 1/32″ Holes — Std Pk 4 — Mstr Ctn 0 — Prod Code 020
• FLR‑50‑1 — 50 Mesh — Std Pk 4 — Mstr Ctn 0 — Prod Code 020
• FLR‑76‑1 — 76 Mesh — Std Pk 4 — Mstr Ctn 0 — Prod Code 020
• FLR‑100‑1 — 100 Mesh — Std Pk 4 — Mstr Ctn 0 — Prod Code 020
• FLR‑150‑1 — 150 Mesh — Std Pk 4 — Mstr Ctn 0 — Prod Code 020
• FLR‑200‑1 — 200 Mesh — Std Pk 4 — Mstr Ctn 0 — Prod Code 020

Irrigation Reverse Flow Tee Filter — 50 GPM Replacement Screens for MTFR Filters (12″ Length)

• MFL‑16‑1 — 1/16″ Holes — Std Pk 4 — Mstr Ctn 0 — Prod Code 020
• MFL‑32‑1 — 1/32″ Holes — Std Pk 4 — Mstr Ctn 0 — Prod Code 020
• MFLR‑50‑1 — 50 Mesh — Std Pk 4 — Mstr Ctn 0 — Prod Code 020
• MFLR‑76‑1 — 76 Mesh — Std Pk 4 — Mstr Ctn 0 — Prod Code 020
• MFLR‑100‑1 — 100 Mesh — Std Pk 4 — Mstr Ctn 0 — Prod Code 020
• MFLR‑150‑1 — 150 Mesh — Std Pk 4 — Mstr Ctn 0 — Prod Code 020
• MFLR‑200‑1 — 200 Mesh — Std Pk 4 — Mstr Ctn 0 — Prod Code 020

Disponible solo a pedido.
