Filters

Irrigation & Turf Product – Filters

Filters Specially designed for agricultural and irrigation applications. Suitable for any application where cool, filtered water is required. Standard units utilize an internal-to-external filter cartridge.

• 200 psi Working Pressure Non-Shock @ 73°F (23°C)
• Filter Body is made from NSF®-PW Approved PVC Material
• Optional Screen Meshes
• Compact Design, Easy to Clean
• Lightweight, Easy to Install
• Filter Screens are designed using a standard perforated Stainless Steel Screen
• Mesh Sizes include an inner Stainless Steel Cloth with Spring Support (external cloth on reverse flow filters)
• Pressure loss: 100 GPM – 3 psi; 50 GPM – 1.25 psi
• May be bushed to required pipe size (Bushings sold separately)

• When more than 100 gpm is required, filters may be installed in parallel
• When installing filter, allow space for removing filter screen for cleaning
• Remove stainless steel filter screen before solvent welding filter to pipe manifold
• When filters are installed in the direct sun, it is suggested the filter body be coated with a water-base latex paint having a high reflectance
• Installation in a shaded area is preferred

CAUTION

• Water hammer may cause severe damage to the filter assembly.
• Back flushing is not recommended.
• Quality grade thread sealant is recommended for all threaded PVC connections.

Mesh Size Chart

• 1/16″ Holes – .0625 – Extension -16
• 1/32″ Holes – .0312 – Extension -32
• 50 Mesh – .0117 – Extension -50
• 76 Mesh – .0095 – Extension -76
• 100 Mesh – .0059 – Extension -100
• 150 Mesh – .0041 – Extension -150
• 200 Mesh – .0029 – Extension -200 Additional mesh sizes available on request.

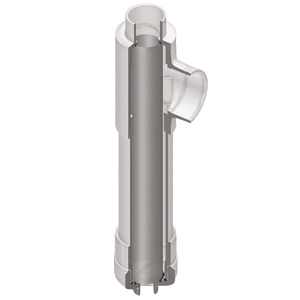

Irrigation Filter Assembly – 100 GPM with Stainless Steel Screen

• FL-16 – 1 – 2-1/2 /3 x 4 – Std Pk 1 – Mstr Ctn 0 – Prod Code 020
• FL-32 – 1 – 2-1/2 /3 x 4 – Std Pk 1 – Mstr Ctn 0 – Prod Code 020
• FL-50 – 2-1/2 /3 x 4 – Std Pk 1 – Mstr Ctn 0 – Prod Code 020
• FL-76 – 2-1/2 /3 x 4 – Std Pk 1 – Mstr Ctn 0 – Prod Code 020
• FL-100 – 2-1/2 /3 x 4 – Std Pk 1 – Mstr Ctn 0 – Prod Code 020
• FL-150 – 2-1/2 /3 x 4 – Std Pk 1 – Mstr Ctn 0 – Prod Code 020
• FL-200 – 2-1/2 /3 x 4 – Std Pk 1 – Mstr Ctn 0 – Prod Code 020

Note: FL-16 and FL-32 can be utilized as Reverse Flow Filters by reversing installation (inlet ↔ outlet). Assemblies furnished standard with a 1-1/4″ IPS tapped cap (FL-4A) for valve use, or may be plugged off (plug not furnished). Optional cap available with 1/4″ IPS tapping for pressure gauge – specify FL-5A when ordering.

Irrigation Filter Assembly – 50 GPM with Stainless Steel Screen

• MFL-16 – 1 – 2-1/2 /3 x 2 – Std Pk 1 – Mstr Ctn 0 – Prod Code 020
• MFL-32 – 1 – 2-1/2 /3 x 2 – Std Pk 1 – Mstr Ctn 0 – Prod Code 020
• MFL-50 – 2-1/2 /3 x 2 – Std Pk 1 – Mstr Ctn 0 – Prod Code 020
• MFL-76 – 2-1/2 /3 x 2 – Std Pk 1 – Mstr Ctn 0 – Prod Code 020
• MFL-100 – 2-1/2 /3 x 2 – Std Pk 1 – Mstr Ctn 0 – Prod Code 020
• MFL-150 – 2-1/2 /3 x 2 – Std Pk 1 – Mstr Ctn 0 – Prod Code 020
• MFL-200 – 2-1/2 /3 x 2 – Std Pk 1 – Mstr Ctn 0 – Prod Code 020

Note: MFL-16 and MFL-32 can be utilized as Reverse Flow Filters by reversing installation (inlet ↔ outlet). Assemblies furnished standard with a 1-1/4″ IPS tapped cap (FL-4A) for valve use, or may be plugged off (plug not furnished). Optional cap available with 1/4″ IPS tapping for pressure gauge – specify FL-5A when ordering.

Irrigation Filter – 100 GPM Replacement Screens (24″ Length)

• FL-16-1 – 1/16″ Holes – Std Pk 4 – Mstr Ctn 0 – Prod Code 020
• FL-32-1 – 1/32″ Holes – Std Pk 4 – Mstr Ctn 0 – Prod Code 020
• FL-50-1 – 50 Mesh – Std Pk 4 – Mstr Ctn 0 – Prod Code 020
• FL-76-1 – 76 Mesh – Std Pk 4 – Mstr Ctn 0 – Prod Code 020
• FL-100-1 – 100 Mesh – Std Pk 4 – Mstr Ctn 0 – Prod Code 020
• FL-150-1 – 150 Mesh – Std Pk 4 – Mstr Ctn 0 – Prod Code 020
• FL-200-1 – 200 Mesh – Std Pk 4 – Mstr Ctn 0 – Prod Code 020

Disponible solo a pedido.
